The slim design of the frame and bodywork helps the rider grip the bike for increased control, while the KX™-inspired seat design offers great freedom of movement for off-road riding.
A lightweight perimeter frame offers optimized rigidity for stability at speed while the short wheelbase facilitates agile handling. High ground clearance allows riders to more easily clear technical terrain features, resulting in confident trail riding.

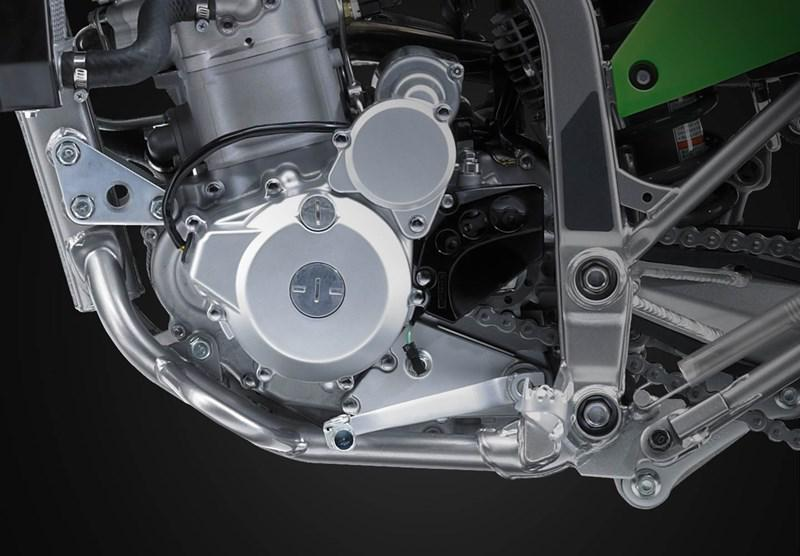

Serious off-road fun starts with the fuel-injected 292cc liquid-cooled four-stroke engine, delivering crisp response, quick-revving power and strong low-end torque. The KLX 300R trail bike is built tough with an engine designed to withstand the rigors of hard trail riding.

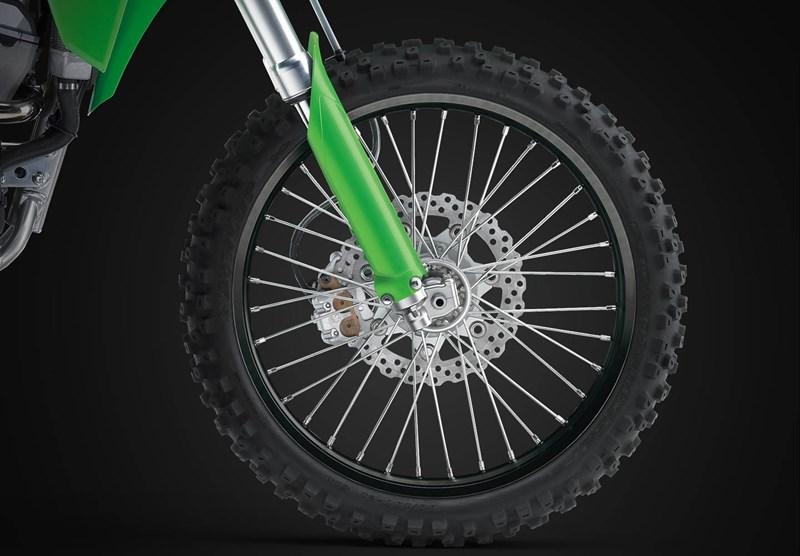

Strong disc brakes add even more confidence and control, with a twin-piston caliper gripping a semi-floating 270mm petal disc in the front and a single-piston caliper with a 240mm petal disc in the rear.
Large-diameter wheels, measuring 21-inches at the front and 18-inches at the rear, efficiently overcome trail obstacles, greatly contributing to trail-riding performance.
The KLX 300R trail bike combines the fun of weekend play with the exhilaration of racing. The strong engine and highly capable chassis satisfy both trail riders looking for a machine ideally suited for recreational riding with friends and family, and racers looking for high performance.

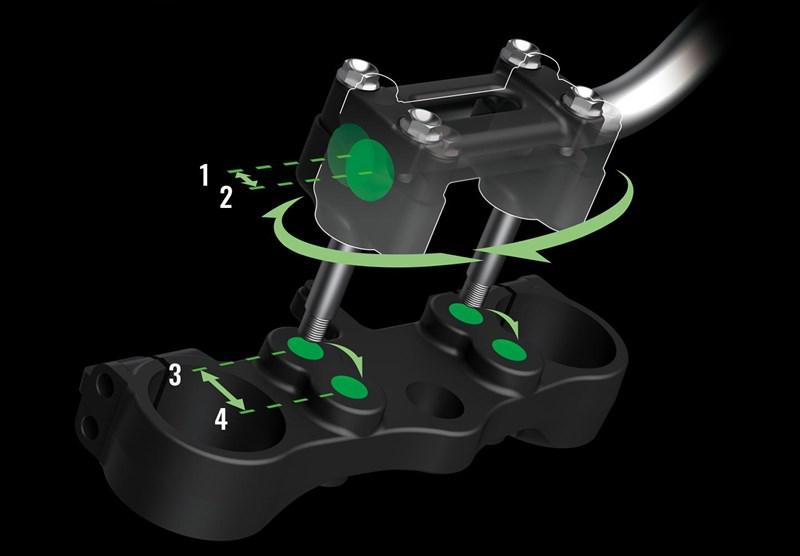

Tailor the KLX 300R trail bike to your size and preference with ERGO-FIT® four-way adjustable handlebar positions.
Smooth-shifting six-speed transmission offers a gear for every situation. Short final gearing (50/14) complements the engine’s low- to mid-range focus, enabling riders to maintain momentum when navigating technical off-road trails.

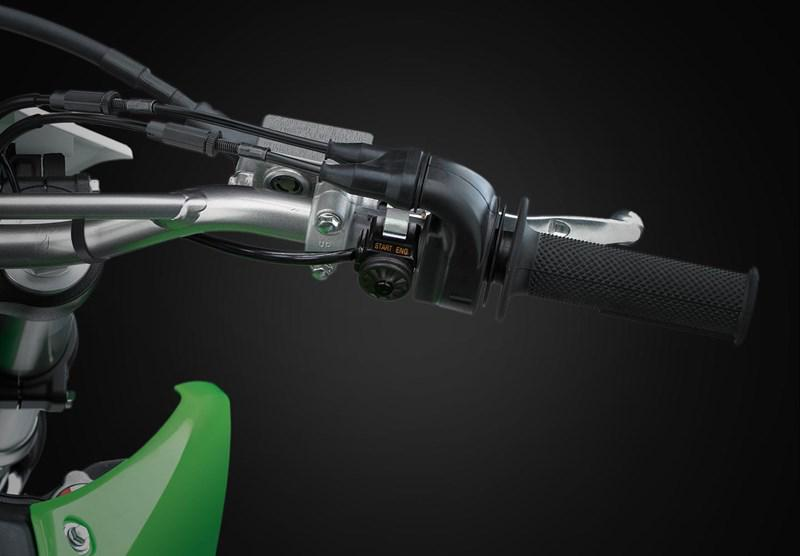

Together with fuel injection, electric start offers hassle-free starting at the push of a button regardless of altitude or air temperature. Clean-burning efficiency earns the KLX 300R trail bike a California Green Sticker for year-round trail access.

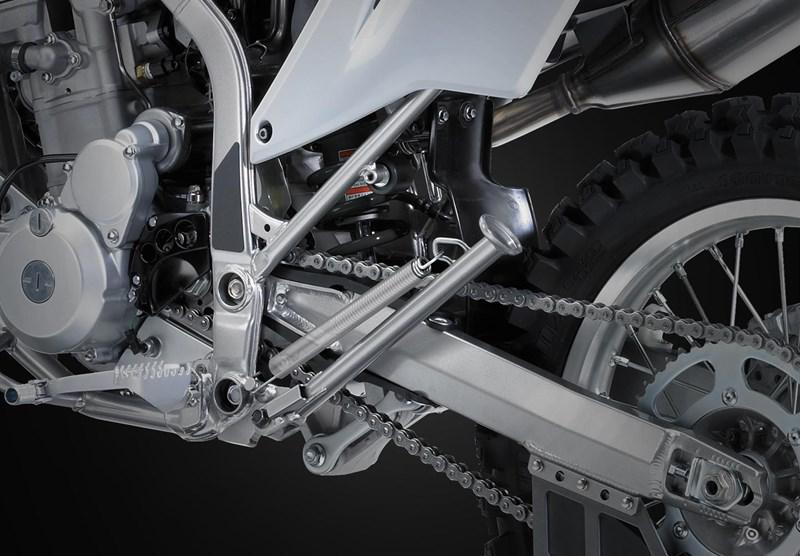

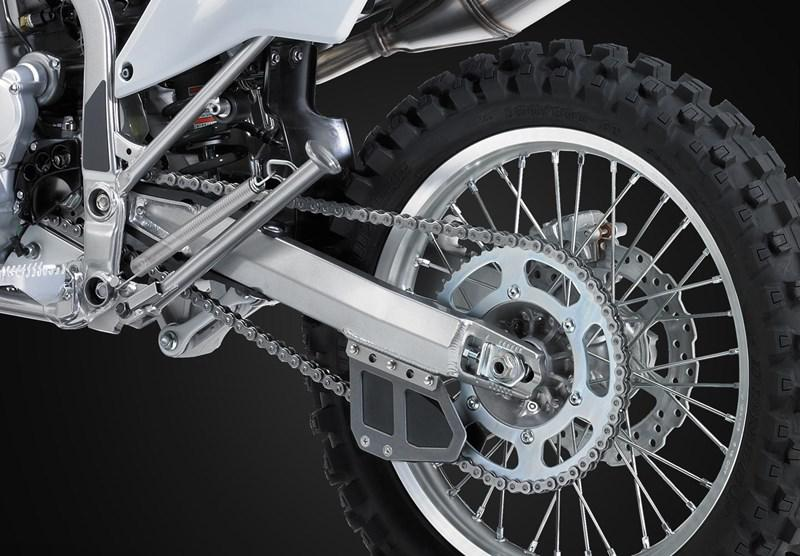

The rear Uni-Trak® single-shock system features preload adjustability along with adjustable compression and rebound damping to suit a wide variety of terrain, riders and preferences.
The KLX 300R trail bike is built for serious play and is equipped with long-travel suspension to confidently handle the rigors of aggressive off-road riding.

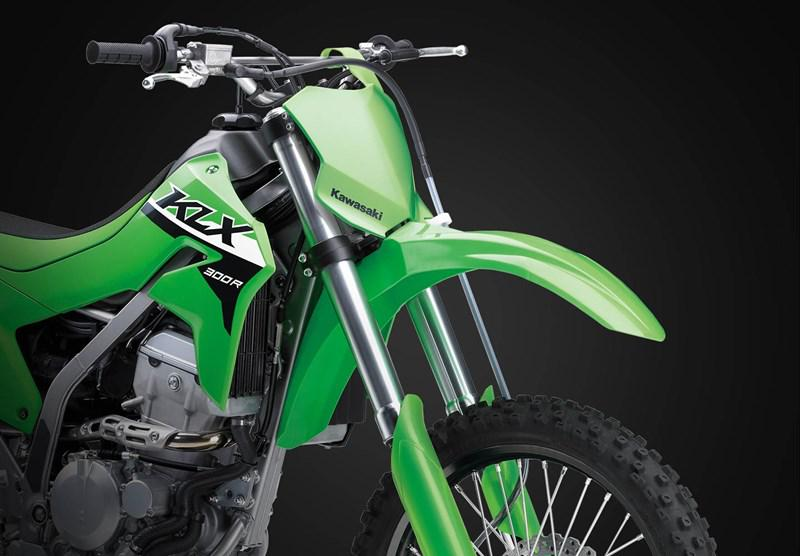

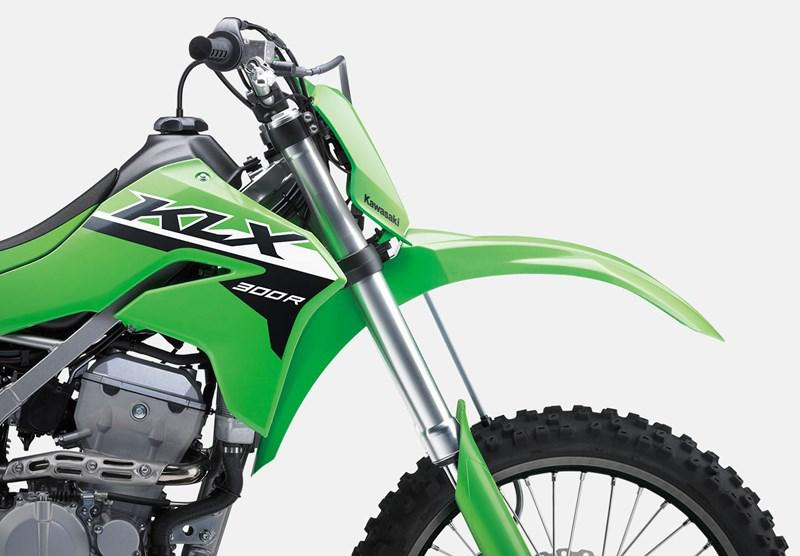

A 43mm inverted front fork aids in stability and control even on rough terrain. The fork settings take advantage of the long travel, using a lower spring rate to allow damping to work over a wider stroke range.
Full-size wheels and powerful disc brakes make the KLX 300R trail bike ready for tough off-road terrain.
| Engine type | Liquid-cooled, 4-stroke, single-cylinder |
|---|---|
| Valve system | DOHC, 4 valves |
| Bore x stroke | 78.0 x 61.2 mm |
| Displacement | 292 cm³ |
| Fuel system | Fuel injection: 34 mm x 1 |
| Lubrication | Forced lubrication, wet sump |
| Starting system | Electric |
| Ignition system | Digital |
| Transmission | 6-speed, return shift |
|---|---|
| Clutch | Wet, multi disc |
| Primary reduction ratio | 2.800 (84/30) |
| Gear ratios 1st | 3.000 (30/10) |
| Gear ratios 2nd | 2.000 (30/15) |
| Gear ratios 3rd | 1.500 (27/18) |
| Gear ratios 4th | 1.250 (25/20) |
| Gear ratios 5th | 1.050 (21/20) |
| Gear ratios 6th | 0.952 (20/21) |
| Final drive | Chain |
| Final reduction ratio | 3.571 (50/14) |
| Frame type | Tubular, semi-double cradle |
|---|---|
| Trail | 109 mm |
| Wheel travel front | 285 mm |
| Wheel travel rear | 285 mm |
| Tyre, front | 80/100-21 51M |
| Tyre, rear | 100/100-18 59M |
| L x W x H | 2,120 x 825 x 1,245 mm |
| Steering angle L/R | 45° / 45° |
| Wheel base | 1,435 mm |
| Ground clearance | 300 mm |
| Fuel capacity | 7.9 litres |
| Seat height | 900 mm |
| Curb mass | 128 kg |
| Front brake type | Single semi-floating petal disc |
|---|---|
| Front brake diameter | Ø 270 mm |
| Front brake caliper type | Dual-piston |
| Rear brake type | Single petal disc |
| Rear brake diameter | Ø 240 mm |
| Rear brake caliper type | Single-piston |
| Front suspension diameter | Ø 43 mm |
